Bogie Measurement Stations

  • Load test stands in floor standing with an under-floor design.
  • Test stands with integrated track width adjustment.
  • Assembly and test stands with upstream and downstream assembly tables.
  • Modular test dimensioning according to modular principle.
  • Variable loading means from one to four load points.
  • Loading means in both hydraulic and electromechanical design.
  • Internal and external height measurement points for the loading means
  • Equipment with sensing bars to determine the wheel contact for different
  • Equipment with measuring prisms to determine the wheel forces and the automatic detection of the wheel diameter and axle alignment.
  • Laser measuring devices for detecting the wheel disc parallelism.
  • Laser measuring devices for detecting any number of Z measurement points in the bogie.
  • Inspection measuring equipment in accordance with DIN EN ISO 7500-1
  • Operation with UIC and DIN-compliant software

Optional:

  • Track width adjustment
  • Axis parallelism measurement equipment
  • Measuring devices for detecting relevant X / Y / Z measurement points
  • Mobile truck transport apparatus.

technical data

From a simple assembly stand to a high-performance measuring machine

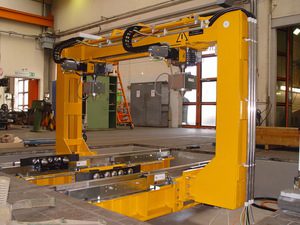

02 Bonn

Bogie pressure measurement stands simulate the real forces acting through the vehicle body on the chassis. In addition to the wheel contact force optimisation that supports safety and the minimisation of wear, various X and Z dimensions are inspected under load.

We manufacture load test stands in different design variants to match both the required dimensions, as well as the level of plant automation.

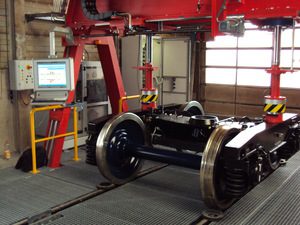

01 ELH Halle

Through self-contained individual components a modular bench system is formed. The modular system allows a targeted assortment of individual components for optimally equipped test and measurement equipment, based on the particular application. The modular system design uses software that continually monitors and controls the test stand. Therefore, both simple measurement or assembly stands with limited demands for their equipment level, as well as highly automated measuring systems are produced with the automatic test equipment.

For all purchased components (PLCs, computer equipment, hydraulic, spindle lifting) only high-quality components from renowned German manufacturers are used.


Technical data

Mounting optionsFloor standing / under floor
Track width adjustmentFloor standing / under floor
Axle centre distancevariable
Connection dataAccording to specification
Stress points1 to 4
Wheel force measurement points4 to 6
Protection classIP 54
Loading forceUp to 400 KN (Higher forces on request)
Nominal temperature-10°C to 65°C
Storage temperature-40°C to 85°C

Measuring accuracy

Load measuring deviceClass (0.3) resolution 0,01kN
Sensing bars / prismsClass (0.3) Resolution 0.01 kN
displacement encoderResolution 0.01mm

Laser measuring device

Triangulation (Laser class 2)Accuracy 0.01 mm
Rotating laser (Laser class 2)Accuracy 0.05 mm
