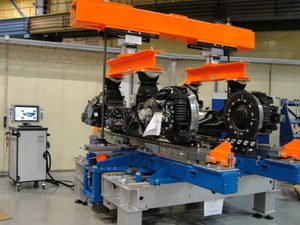

Mobile Bogie Measurement Stations – heavy

• Modular test stand system for light and heavy bogies, adaption if necessary
• System communication via fail-safe data
• Electromechanical loading means
• Force transmission by connecting rod(s)
• Compact design with no rotating portal and pit
• Transportable by forklift / crane and truck
• Calibration by accredited body
• Inspection as measuring equipment in accordance with DIN EN ISO 7500-1
• Operation with UIC and DIN-compliant software

Optional equipment and measuring devices:

• Fully automatic measurement
• Track width adjustment
• Axis parallelism, wheel disc parallelism, wheel diameter
• Measuring means for detecting X, Y and Z measuring points
• Hoist

Technical data

Bogie pressure measurement stands simulate the real forces acting through the vehicle body on the chassis. In addition to wheel contact force optimisation that supports safety and the minimisation of wear, various X and Z dimensions are inspected under load.

We manufacture mobile bogie load measuring stands type BMS 09 for light bogies (trams, commuter trains and subways) and type BMS 1.4 for heavy types of bogies (coaches, locomotives, etc.).

Special feature: it is from the mobile bogie test stand family, which reverses the principle of stationary test benches as the pressure load takes place from the bottom allowing a very compact design. The method simulates operating loads on the bogie, which act when installed on the frame and simultaneously measures wheel vertical or axis parallelism among other things. This allows the test stand to be very cost effective. This system is flexible and makes examining bogies for various types of railway vehicles easy.

Technical data measuring system

Technical data measuring points
